Battery power transfer cart has used a battery as the power source to provide power to the DC traction motor. Perfect handling equipment manufacturer offers a range of battery power transfer carts, which are not only durable and safe but also produce a variety of sizes and load capacities to fit your transportation need. Battery transfer cart can make a safer work environment and improve productivity. Call Perfect today to learn more about the battery power transfer trolley.

Two Types of Hot Sales for Perfect Battery Power Transfer Cart

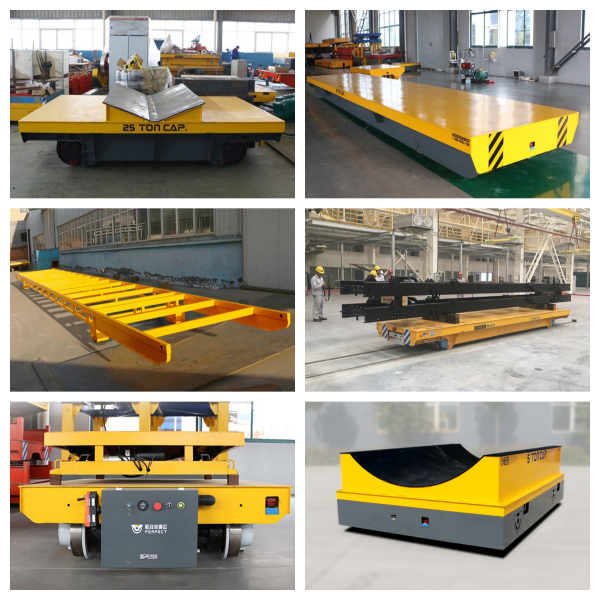

Heavy Duty Electric Rail Transfer Cart

Battery electric rail transfer car has a simple structure, firmness, reliable operation, easy maintenance and overhaul, and relatively low maintenance costs in the later period. Therefore, it is widely used in metallurgy, heavy industry, building materials, electric power, machinery, logistics, and other industries, It is mainly manufactured to solve the narrow space of the factory workshop and the heavy load.

• Load capacity:  1-150T
• Power supply type:  battery power supply
• Continuous working time:  6-8h
• Application range: factory buildings, logistics, workshops, docks, warehouses, production lines, smelting

Advantage of Heavy Duty Electric Rail Transfer Cart

Versatile

It can also be equipped with positioning devices, clamping devices, lifting platforms, and other auxiliary devices to meet the needs of different occasions. This series of vehicles can be equipped with a PLC control system to realize complete automatic control.

Stable structure

The wheel bearing is made of integral cast steel, and the integral cast steel shaft can ensure full cooperation with the frame of the car body, which greatly enhances stability.

Easy to operate, safe, and efficient

The load is not limited, and it is not limited by the working conditions. With a series of safety protection measures, it can be remotely controlled by wireless remote control.

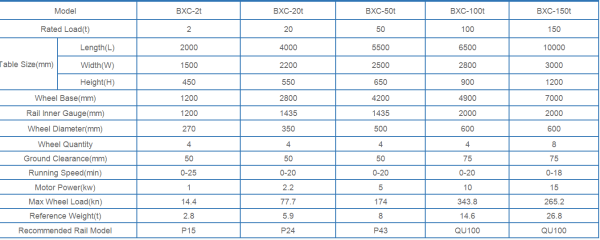

Technical Parameters

Remak: The parameters are reference, all parts can be customized owing to your handling environment.

Video of Heavy Duty Electric Rail Transfer Cart from Factory

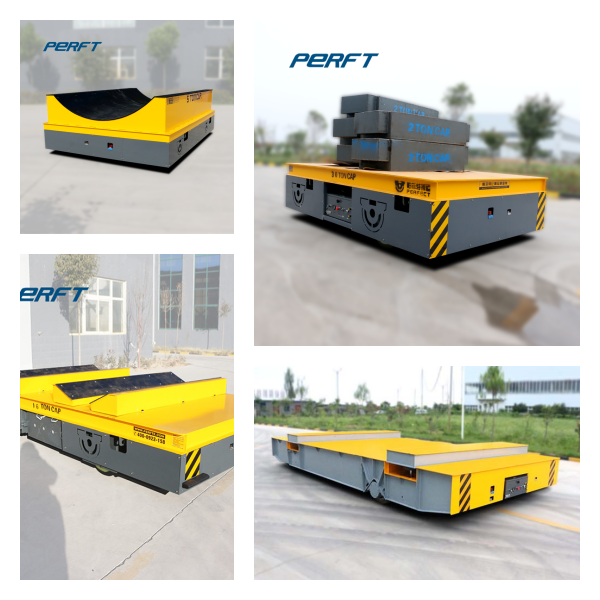

Battery Electric Trackless Transfer Cart

BWP series battery trackless electric cart is composed of a power supply, transmission mechanism, steel structure load-bearing frame, steering system, traveling mechanism, control module, and fault diagnosis module. This series of transfer cart can realize 360 rotation in situ, stop, forward, reverse, and turn and other functions, all of which are equipped with the safety warning and safety detection devices, immediately alarm and stop automatically when encountering pedestrians or obstacles, and equipped with fully automatic intelligent Charger. The trackless transfer vehicle can also be equipped with positioning devices, clamping devices, lifting platforms, and other auxiliary devices to meet the needs of different occasions. This series of vehicles can be equipped with PLC control system to realize complete automatic control.

• Load capacity: 1-500T
• Power supply type: battery power supply
• Application range: 5s workshop, automobile mold, material transfer, aerospace equipment workshop, air conditioning workshop, casting mold workshop
• Applicable materials: steel coils, aluminum coils, galvanized coils, transformers, cable reels, castings, motors, containers, carriages, pressure vessels, etc.

Features

1. Load transportation: BWP series trackless electric cart are products specially designed for transportation, so the primary function is transportation;
2. Turning: BWP series trackless electric cart itself is equipped with steering wheels and steering control, so controlling steering is one of its main functions;
3. Lifting: BWP series trackless electric cart can be added with hydraulic, mechanical, and other lifting devices according to customer needs, and the lifting function can be achieved on the original basis;
4. Rollover: BWP series trackless electric cart can be added with hydraulic, mechanical, and other rollover devices according to customer needs, so as to achieve rollover function on the original basis;
5. Rolling on the table surface: BWP series trackless electric cart can add rollers, rollers, and other devices according to customer needs, and achieve the functions of turning cylindrical workpieces and smooth moving of flat workpieces on the basis of the original;
6. Other functions: the company can customize and develop the functions required by customers

Video of Battery Electric Trackless Transfer Cart from Factory

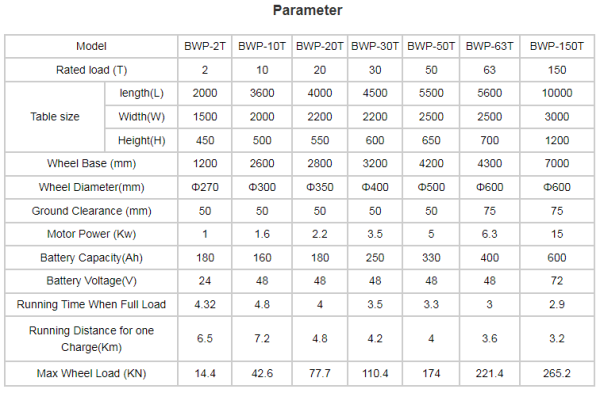

Technical Parameters

Remak: The parameters are for your reference, all parts can be customized owing to your handling environment.

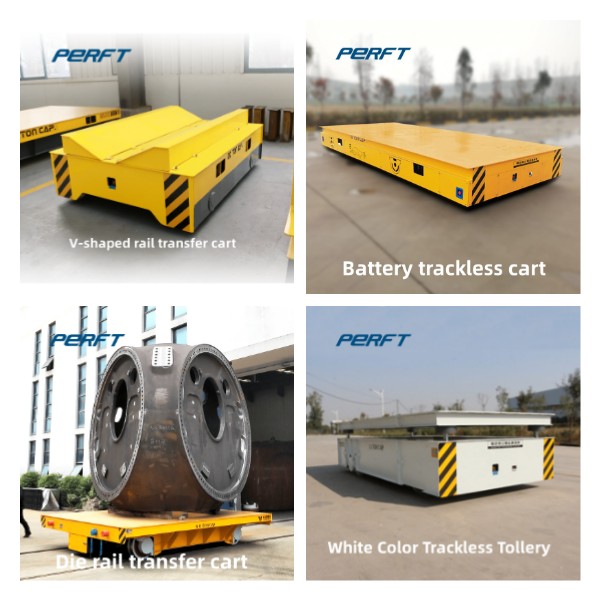

Common Various Solutions for You to Choose

• 1 tons to over 300 tons capacity option
• Battery Voltage(V): 24, 36, 48 or 72
• Table Size(mm): Length(L) Width(W) Height(H)
• Rail or trackless: (straight or curved tracks ).
• Appearance color. For example, our Egyptian steel customer prefers white exterior color for their trackless transfer carts.
• Three function systems: Hydraulic lifting, Directional, and Steerable.
• Deck design: flat, stand-off, parallel bars, tilting, U-shaped, V-shaped, parallel V-shaped, custom-shaped deck, etc.
• Electric turntable rail carts and electric rotating platforms work together.

The Price of Battery Power Transfer Cart

Battery Power Transfer Cart can be configured with additional functional types, such as hydraulic lift type, supporting shaft type, oil-electric hybrid type, mechanical arm type, etc. Different types of rail flat cars have different prices. Generally speaking, the price is cheap without additional functions, and the hydraulic pressure or long-term continuous work is slightly more expensive. You can configure it according to the actual material handling situation.

Perfect Material Transfer Trolley Manufacturer

Perfect Handling Equipment Co., Ltd is a professional and experienced material transfer trolley manufacturer in China, with 15 years of history. Perfect provide several hot sale industrial transfer cart for our clients, such as rail transfer cart, trackless transfer cart, steerable transfer car, no-powered transfer cart, hydraulic lifting, cable powered transfer cart, battery powered transfer cart, low-voltage rail transfer cart, die transfer cart, ladle transfer cart, rail, wheels and accessories, etc. PERFECT is committed to being the supplier of the best and high-efficiency factory handling equipment. We take any order with special requirements seriously, and even if you still don’t know if our rail trailers can be used in your plant, we will be more than happy to help you design your entire material handling project together.

FAQ

1. What is the warranty?
Two years warranty. during the warranty period, we will send spare parts to you for free.

2, Where has been sent?
Start in 2015, sell to North America(25.00%), Eastern Europe(20.00%), Central America(10.00%), Western Europe(20.00%), Mid East(25.00%), South Asia(15.00%), Oceania(10.00%), Africa(13.00%), Southeast Asia(28.00%),

3. Why CHOOSE US, not other suppliers?

1. 15 years of R&D design and manufacturing experience.
2. CE, SGS, ISO certificate.
2. Rich customization experience.
4. Rich experience in exportation.
5. Complete service concept.
